Foot

Reference for use, indications:

Improves gait in patients with foot drop by central nervous system injuries

• Stroke
• Hemiplegia
• Traumatic Brain Injury
• Incomplete Spinal Cord Injury
• Multiple Sclerosis

Core Technology Working Principal

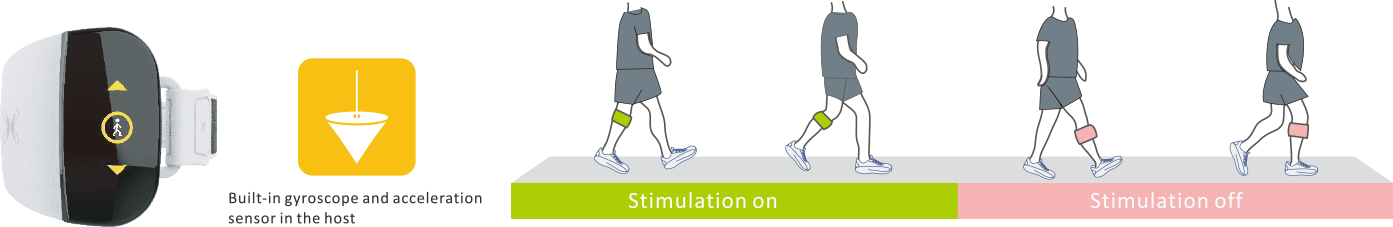

XFT-2001E Foot Drop System is intended to address the lack of ankle dorsiflexion in patients who have sustained damage to upper motor neurons or pathways to the spinal cord. During the swing phase of walking, the XFT-2001E electrically stimulates the appropriate muscles that cause ankle dorsiflexion and may thus improve the individual's gait.
Medical benefits of Functional Electrical Stimulation (FES) may include prevention/retardation of disuse atrophy, increased local blood flow, muscle reeducation, and maintained or increased joint range of motion.

Utilizing the latest MEMS sensor technology, the system employs AI intelligent algorithms to continuously learn and track the patient's gait. When the patient intends to lift their leg, timely electrical stimulation is applied.
The repetitive movement patterns' information is transmitted to the central nervous system, aiming to achieve
the reconstruction of the neural network.

Functional electrical stimulation
FES uses small electrical impulses to stimulate contractions in muscles that have lost nerve control to restore lost
or impaired function.

Restoration of the neuromotor function
Long-term repetitive motion info is sent to the central nervous system, forming an excitation trace in the cerebral
cortex for the brain to restore neuromotor function.

APP control
Equipped with an app and adopted the cutting-edge "XFT Cloud" technology.

Innovation

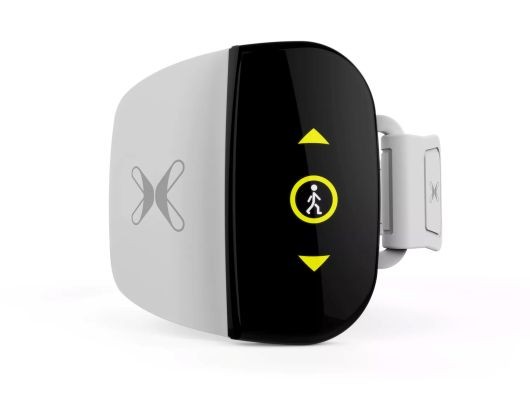

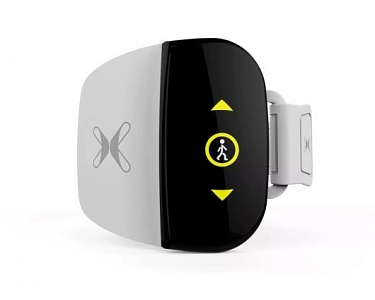

Stim unit and Cuff

• IPX6 high grade protection design, to achieve excellent waterproof and dust-proof characteristics
• The OLED display screen presents a bright and vibrant visual effects. The IML touch panel is durable and luminous
• Magnetic charging interface, convenient and quick
• Can be used on both left and right legs

Patented sequential electrodes

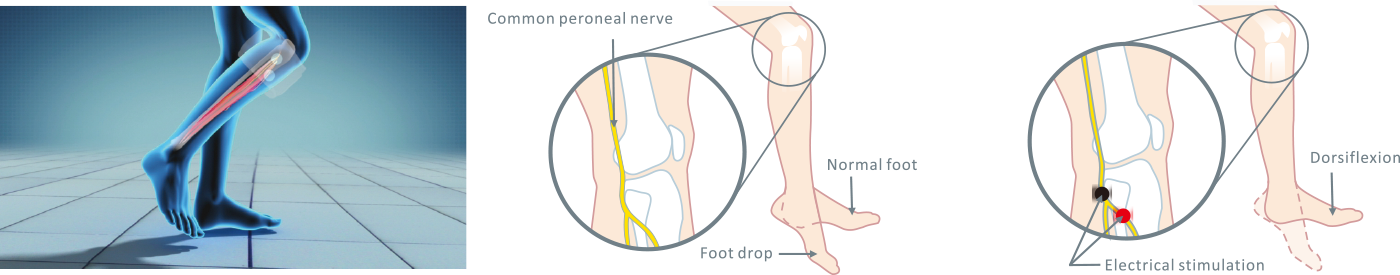

• Designed according to anatomy, the electrodes can cover the common peroneal nerve position precisely
• Medical-grade stainless steel electrodes, free of consumables, durable
• Integrated strap for easy cleaning, avoiding the risk of cross infection

Equipped with APP

• Internal Bluetooth connects to an iOS or Android App for program customization, data tracking, parameter adjustment, and real-time gait analysis.

Combination of active and passive rehabilitation training

Passive Training mode
For patients who lack active training, rehabilitation should be done as early as possible when the condition is stable.

This mode can be selected for muscle training when the patient is sitting or lying down. The purpose of the training mode is to promote muscle function recovery, delay muscle atrophy of the diseased leg, maintain and improve the range of motion of the ankle joint and enhance local blood circulation. Two to three 20-minute sessions per day are used to prevent muscular wasting atrophy.

Gait mode
Stimulate while walking, restore the neuromotor function. This device helps them to walk with normal gait when the patients want to lift their legs to walk. Stimulate while walking, and the repetitive motor pattern information is passed into the central nervous system, forming excitation traces in the cerebral cortex, restoring and reconstructing the neuromotor function.

Advantages

Treatment

Package Includes

• 1 x Stimulator
• 1 x Power adapter
• 1 x Charging cable
• 1 x User manual
• 1 x Portable Case
